I wanted to make a perfume bottle with a flower and some diamonds but I was thinking what flower I wanted to use for the bottle. First I was thinking of a rose but then I decided not to use a rose since it is already a very common flower. Instead of a rose I used a lotus flower for this perfume bottle.

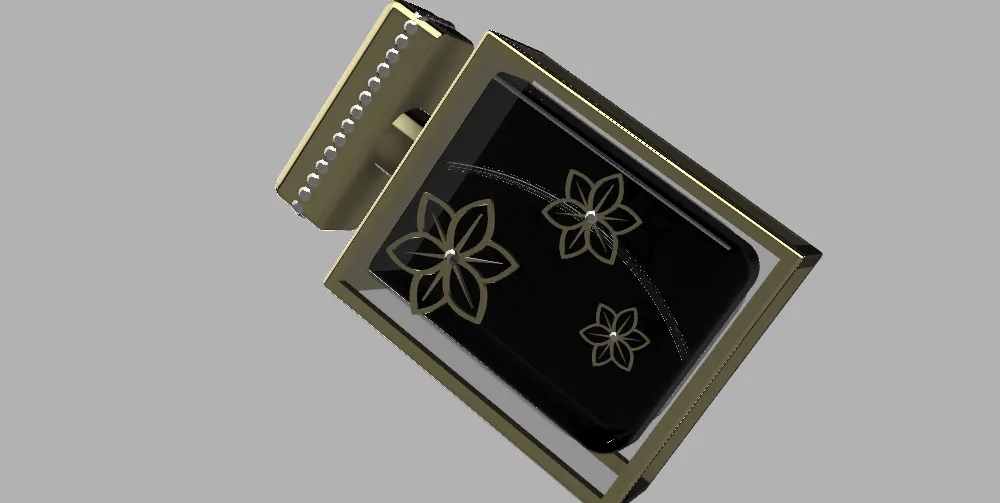

So the bottle is made of transparent clear glass. It has a golden frame around it and the perfume itself is black. You see some golden lotus flowers and diamonds in the glass. The cap has a nice small lotus flower engraved and has 38 diamonds. Inside the bottle you see a thin pipe for the spray.

Tutorial

I found a lotus flower from the internet that I want to use and inserted the image. Then with Spline I traced the lines.

Then I sketched a rectangle and extruded it. This will be the golden frame.

To get the cut for the frame, I offset the rectangle from the front and the sides. Then I extruded with operation Cut and extruded it again with operation New Body for the bottle. I gave the bottle a clear glass appearance. Then I split the body so I can create the liquid perfume which I changed the appearance too.

I sketched a rectangle and extruded it. This is the cap of the perfume bottle. I also smoothen the edges of the bottle and the innner part too.

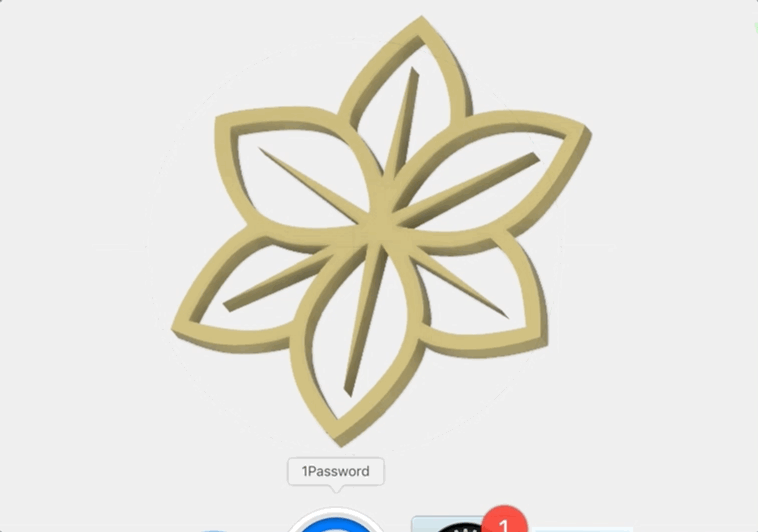

I extruded the lotus flower that I sketched in the beginning.

Here I scaled the lotus flower and placed it on the bottle. I copy pasted the same flower and scaled it again and did the same with the third lotus flower.

I inserted a diamond that I made before and placed it in the middle of the three lotus flowers.

I sketched two circles that are both meant for the spray.I extruded them and created a tiny hole.

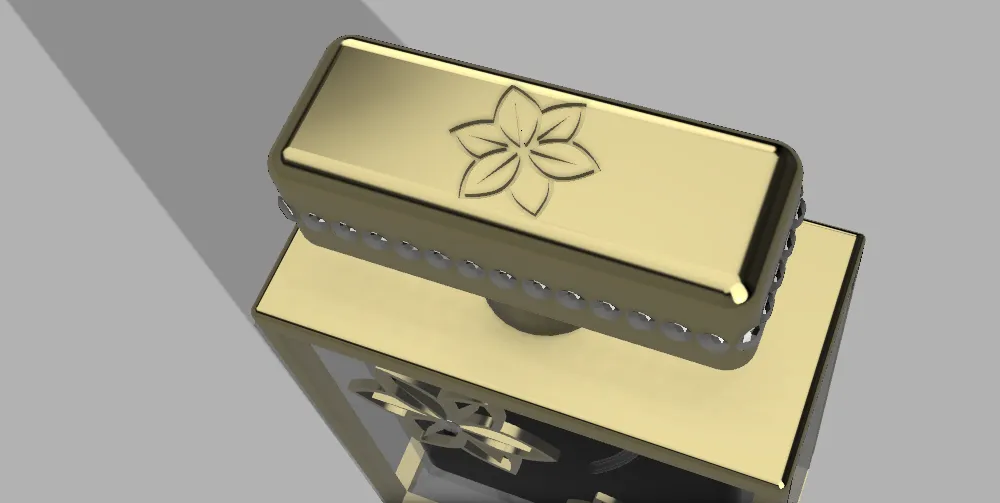

The same lotus that I sketched has been extruded and scaled. Then I placed it in the centre of the cap and I extruded the flower with operation Cut. I inserted a diamond and created a pattern around the cap with ( Pattern on Path).

The three lotus flowers and the three diamonds I mirrored so the back of the bottle also has lotus flowers.

I created a pipe to make the perfume bottle look more realistic. I simply sketched a slightly curvy line with Spline and by clicking Pipe and select Hollow, I created a solid coil. The appearance of the pipe I changed into Transparent Plastic.
