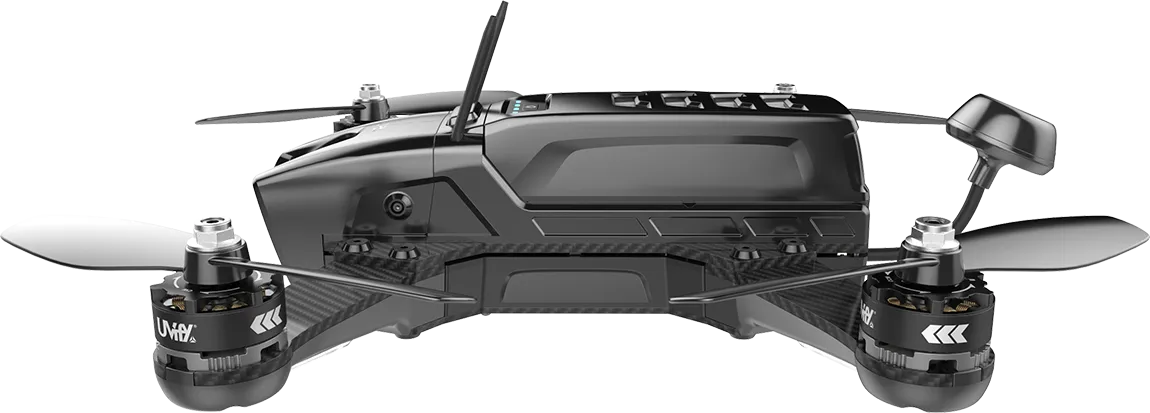

Draco
Draco is a definitive prepared to-fly for automaton hustling. Highlights 5.8 GHz blasting quick simple video downlink to FPV goggles.
Prepared to fly
Advanced for hustling, freestyling and outrageous aeronautical cinematography, the Draco arrangement comes flight-prepared with incredible highlights and is incredibly simple to utilize.
Superior automatons worked to persevere
A definitely tuned powertrain empowers Draco to slice through 3D space quicker than a hot blade through spread, all while remaining cool and beautiful.
Secluded form
Draco gives you flexibility and solidness. Its swappable parts empower you to rapidly fix or alter your Draco, keeping you in the race.
Shrewd battery innovation
Continue flying with UVify's licensed fast swap brilliant battery. Draco's battery has a worked in PC that estimates mission-basic data, including voltage, current and battery life. Draco's fast swap savvy battery is a snap to utilize and gives you the opportunity to transport your rigging without stress.
Coordinated charger and balancer
Coordinated charger and balancer, no compelling reason to set up a charger, simply plug it into the UVify charge square and it'll wrap up.
Future confirmation
Draco was structured in light of things to come. UVify's measured form guarantees that your Draco will profit by the most recent and most prominent developments from our lab.
Worked for speed
Draco's impetus framework is upgraded for elite. UVify is made out of various Masters and PhD experts with long periods of plan learning and experience identifying with automaton advances, bringing you front line innovation.
Upgradeable center parts
UVify's secluded structure enables you to overhaul your Draco as you want.
Most extreme convenientce
Draco parts are effectively transported and immediately collected, giving you the opportunity to get up and go to the most extraordinary flying situations effortlessly.
You break we supplant
Draco has been fight tried in the most outrageous conditions far and wide. Be that as it may, on the off chance that you do figure out how to break an arm, its simple to hold flying because of UVify's hot-swap arm. Draco offers full Beta flight and BL Heli mix and support.
Air ship
• Highly crash safe polycarbonate plastic sythesis
• Matte dark complete (hues will be accessible)
• 4k twill carbon case
• 240mm engine to engine wheelbase
• 485g/1.07lbs weight (no battery)
• Modular componentry, no welding required
• Upgradeable to HD
Astute Racing Battery
• 4S high-thickness lithium polymer
• 1800mAh limit
• 65C persistent release, 100C burst
• Onboard current sensor
• Onboard charging and adjusting circuits
• Memory ability, screen life expectancy and execution after some time
• Gauge marker
• On/Off power control
• 207g/0.46lbs weight
Engines
• Direct drive 3-stage brushless DC engine
• 2206 stator estimate
• 500W ceaseless
• 2300RPM/V
• 7mm high temperature neodymium bend magnets
• 0.15mm steel stator covers
• 5mm titanium empty shaft
• 12/14 post plan
• Up to 6S fit
Speed Controller
• 30A brushless electronic speed controller
• 60A burst rating
• Up to 6S input
• Active braking RPM control
• Temperature observing
• Field-situated control calculation (FOC) proficient
Prop
• 5 inch 2 edge propeller
• Designed for proficient flight
• Polycarbonate plastic organization
• Easy substitution
• Approximately 1200g of push per propeller
Flight Controller
• 32-bit MCU
• SPI to sensors
• Serial association with collector
• GPIO accessible
• Compatible with many open-source firmwares
• Modular
Sensors
• 6-hub IMU (gyro and accelerometer)
• Industrial vibration confinement
• SPI interface
• Up to 32kHz refresh rate
• Modular
Video Transmitter
• 5.8GHz simple video transmission framework
• Up to 40 accessible channels (nation subordinate)
• Variable power yield (<1mw, 25mW, 200mW, 600mW)
• Pit mode accessible, permitting driving without transmitting
• No distinguishable dormancy
• Standard SMA association
• Pagoda omnidirectional circularly spellbound video radio wire
• Modular with Video Overlay System
Video Overlay System
• 32-bit twofold supported full VGA goals
• PAL and NTSC perfect
• Allows full setup of the accompanying through FPV feed: VTx settings, Draco FC settings, OSD settings, Camera settings
• Custom logo
• Modular with Video Transmitter
Camera
• Sony 1/3" Super HAD II CCD 600TVL
• 2.5mm Lens
• Adjustable point (0/20/40/60 degrees)
• Wide Dynamic Range
• Low light fit
• Modular
Driven Lighting
• Fully addressable WS2812 RGB LEDs (front and back)
• Control by means of flight controller
• Selectable RGB LEDs (arms)
• Light dissemination covers
Charger
• 16.8V 2A Output
• 33.6W
• Approx.1C charge rate for expanded lipo life
• Charge Draco 1800mAh lipo in Approx.1 hour
What's in the container:
- UVify Draco Chassis
- Sony 1/3" Super HAD II CCD 600TVL Camera
- 4x Draco Arms (Pre-Attached)
- Draco Smart Battery
- Draco Smart Charger
- USB Cable
- 8x Propellers (4 Spare)
- Toolbox (Allen Keys and Prop Removal Tool)
- UVify Warranty
