Hello Hivers!

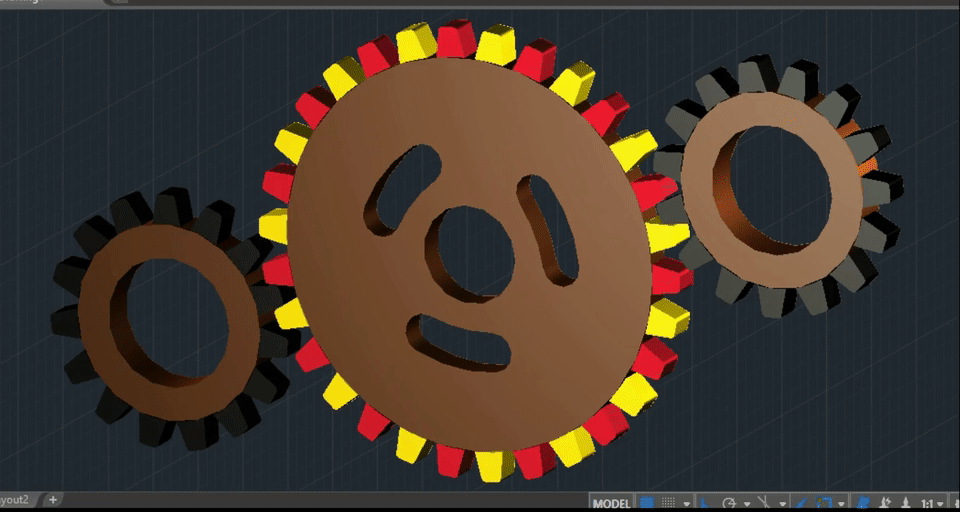

I have another catered design for you today. This time, I made a 3D model design of a gear. As shown in the sped up video, I created 3 gears in connected motion. I didn't find this too difficult to create but sometimes I get frustrated in finding the exact numbers of teeth suitable for a 100 mm radius pitch. But with the trial and error I made, I got the best numbers of teeth with the given teeth size and circular pitch.

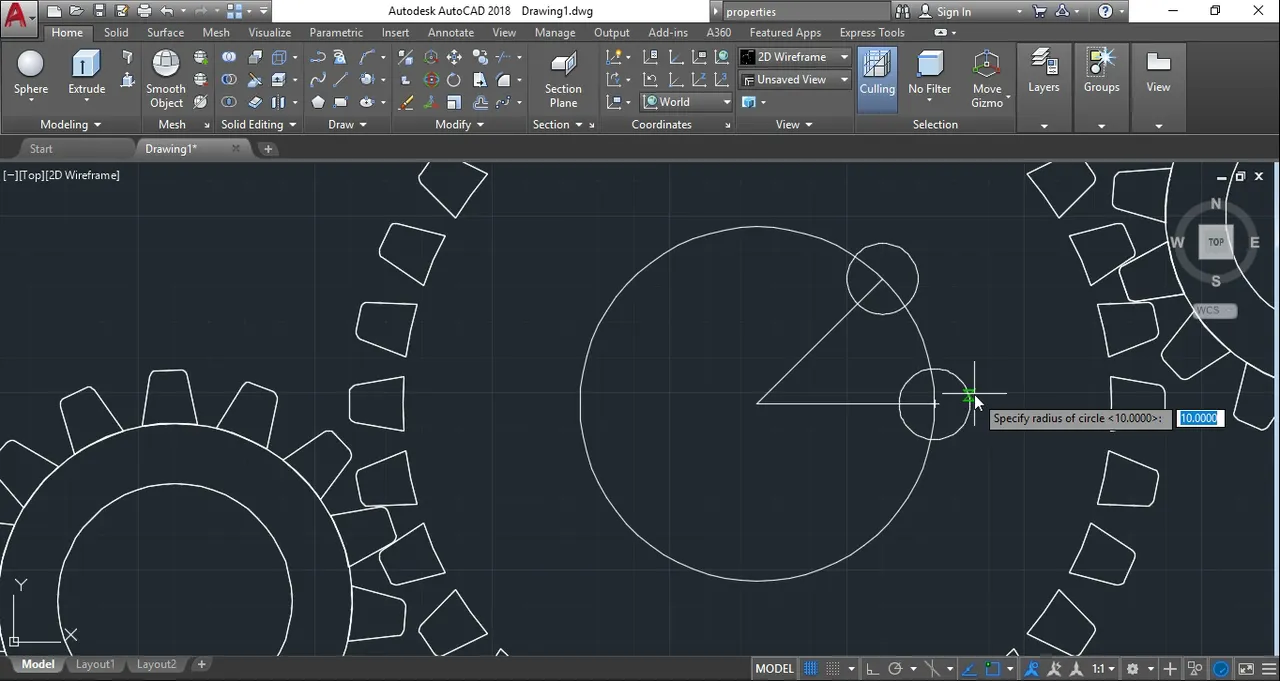

The video is sped up for about x10 so as a requirement, I made a step by step procedure as shown in the snaps below.
Autocad Functions I used:
- Basic functions like Line, Circle, Move, Copy, etc.
- Intermediate functions like Explode, Array, Subtract, Union etc.
Finished Design
Finished Design w/ added materials
Some Rendered PNGs(Free of use):
Follow me and stay tuned for more of these 3D designs.
"best of time"
