Today Arie is showing us progress on the there-point locking system that he's been working on for entrance doors.
Designing and building this system has been challenging but the current version shows much progress has been done.
This is the central command mechanism that will be controlled by the handles. The system is working. There are a few adjustments to be made. The main problem to address is the length of travel of the rods for the 3 points. Each rod currently travels about 1cm to lock which is not enough. They need to travel 2cm for better result.

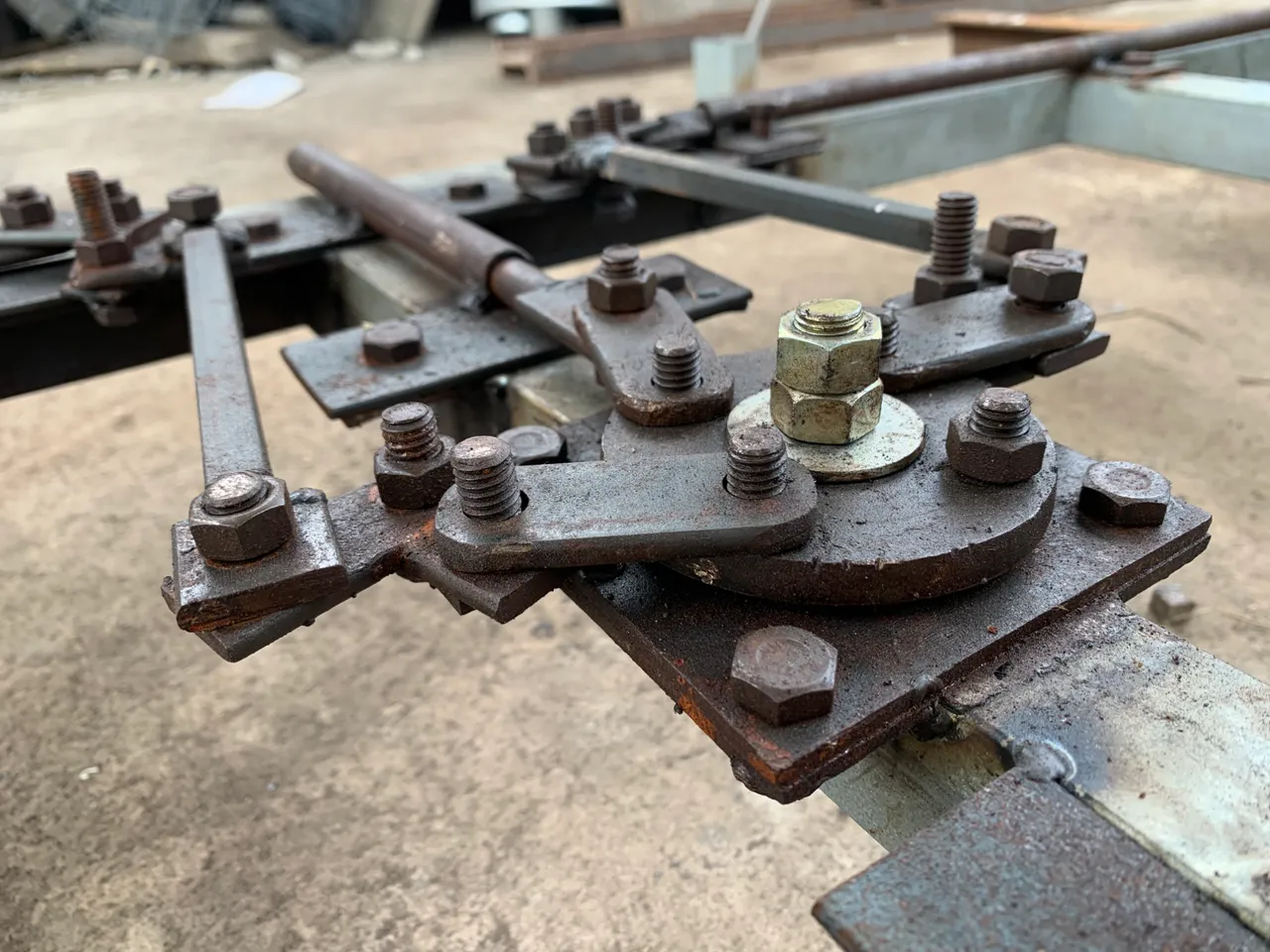

Control mechanism and middle point
This is the high point at the top of the door.
Connection to ground point
Ground point
Sample for two handles
Each handle is made of two rebars of different diameters welded together.
This design is based on ergonomics. The smaller rebar is here to give more resting surface to the fingers when they grip the handle.
