Transitioning a cinema camera like the Blackmagic Pyxis 6K from a handheld rig to a gimbal setup is a balancing act—literally and figuratively. Handheld rigs give you flexibility, tactile control, and weight distribution for long takes, while gimbals unlock buttery-smooth camera movement, tracking shots, and dynamic motion. But swapping between the two isn’t always straightforward, especially when you factor in external power solutions, larger monitors, and accessories.
In this post, I’ll walk you through my process of rigging the Pyxis 6K from a handheld build to a DJI gimbal configuration. I’ll cover how I powered the camera with an external V-mount battery mounted on the gimbal’s side handle, how I incorporated a 7-inch monitor, and what lessons I learned about weight distribution, cabling, and workflow efficiency.
Starting Point: The Handheld Rig
My handheld rig for the Pyxis 6K is built around the essentials:
Baseplate with 15mm rods
Shoulder pad for comfort
Follow focus system
Top handle for low-angle work
Matte box with ND filters
Power routed from a V-mount plate on the rear rods
This build feels solid on the shoulder and gives the Pyxis that cinema-camera heft we all expect. The weight is evenly distributed, the monitor sits just above the lens for easy framing, and everything is balanced for long handheld sessions.
The challenge comes when you need to move quickly from handheld to a gimbal setup. You can’t just throw a 12–15 lb rig onto a DJI gimbal—it’s not practical. You need to strip it down while still ensuring you have power and monitoring.
Stripping Down for the Gimbal
When I move to the gimbal, the goal is lightweight efficiency. That means removing every non-essential accessory while still keeping the camera fully operational. Here’s what I strip down:
Shoulder pad → gone
Matte box → replaced with screw-on ND filters
Follow focus → off (I switch to manual focus pulls or wireless if needed)
Rod system → removed unless required for lens support
The Pyxis body itself is not heavy, but once you add lenses, batteries, and monitors, weight becomes the enemy of smooth balance. A DJI gimbal has a limited payload capacity, so shaving grams makes a huge difference.

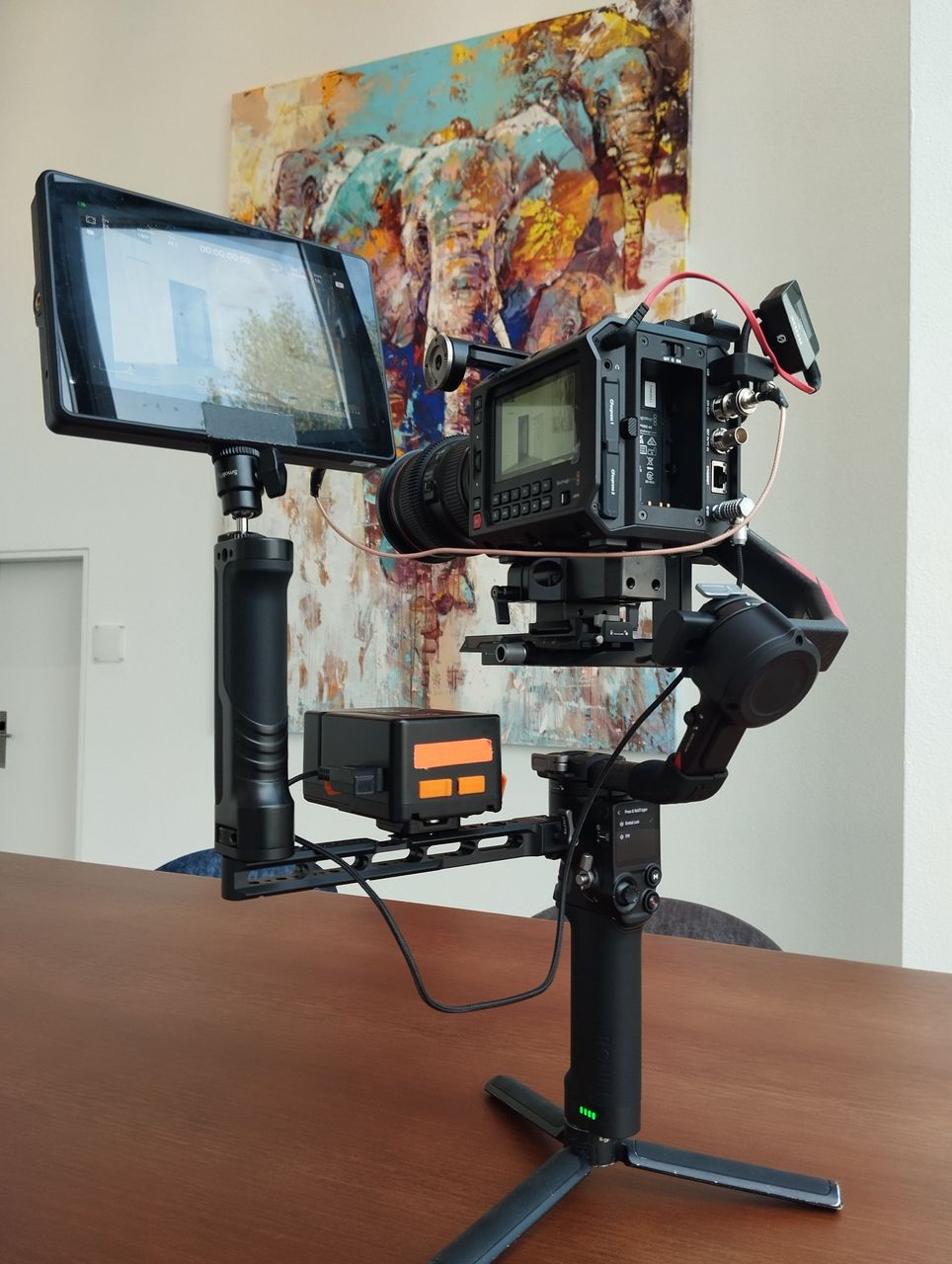

Powering the Pyxis: V-Mount on the Side Handle
One of the biggest rigging decisions was power. The Pyxis 6K can chew through internal batteries quickly, so external power is a must for longer shoots. Instead of mounting the V-mount battery directly onto the camera (which makes it back-heavy and tough to balance), I placed the battery on the side handle of the DJI gimbal.
This does two things:
- Shifts the weight off the camera body so the gimbal has less to balance.
- Improves ergonomics by making the gimbal handle heavier, which counteracts the top-heavy load of the camera.
A short, flexible D-Tap to DC cable runs from the V-mount to the camera, secured along the gimbal arm with cable ties. This keeps things neat and prevents snags mid-shot.
Monitoring with a 7-Inch Screen
The Pyxis’s built-in screen is serviceable, but on a gimbal, it’s not ideal for framing or focus pulls. I opted for a 7-inch external monitor, which I mounted on the crossbar of the DJI gimbal using a cold shoe arm.
This placement keeps the monitor in my line of sight without interfering with the camera’s balance. Since the monitor draws power, I also fed it from the same V-mount battery using a second D-Tap output. Having both the camera and monitor powered from one source simplified the rig and reduced cable clutter.
The Balancing Act
Balancing the Pyxis on the DJI gimbal took patience. Here’s what I found worked best:
Lens choice matters. Heavy cine zooms made balancing nearly impossible. I stuck with lightweight primes for this setup.
Battery off-camera is a game changer. Mounting the V-mount on the side handle instead of the camera shaved enough weight to bring the Pyxis into balance range.
Monitor placement is critical. Too far forward or back, and the gimbal motors strain. Keeping it close to the handle’s center axis helped maintain stability.
It took a bit of trial and error, but once dialed in, the gimbal handled the Pyxis smoothly—even with the 7-inch monitor running.
Workflow Benefits
Switching between handheld and gimbal is always a compromise. But this rigging setup gave me a few key benefits:
Speed: Because I powered both the camera and monitor from one V-mount, swapping from handheld to gimbal meant moving the battery, not rewiring an entire power system.
Consistency: The external monitor gave me the same visual reference on both setups. I didn’t have to adjust to a smaller or differently positioned screen.
Reduced fatigue: With the V-mount weight off the camera body, the gimbal handled better, and I could run smoother shots for longer.
Lessons Learned
A few takeaways from this process:
- Plan your cable runs. On a gimbal, messy cables don’t just look bad—they physically interfere with movement. Secure everything tightly.
- Invest in lightweight glass. Even though the Pyxis can handle larger lenses, your gimbal might not. I found compact primes ideal.
- Test before the shoot. Don’t assume your handheld rig will transition seamlessly. Practice stripping it down, mounting it on the gimbal, and balancing it ahead of time.
- Think about operator comfort. Mounting the V-mount on the handle not only helped balance but also gave me a counterweight that reduced arm strain.
Final Thoughts
Rigging the Blackmagic Pyxis 6K from a handheld build to a DJI gimbal isn’t just about making it fit—it’s about making it practical for real-world shooting. By moving power off the camera body, integrating a reliable 7-inch monitor, and carefully managing weight distribution, I built a system that balances efficiency with creative flexibility.
Now, switching between handheld and gimbal doesn’t feel like rebuilding the camera from scratch. It’s a streamlined process that keeps me focused on storytelling, not gear wrangling.
If you’re working with the Pyxis (or any other cinema camera) and struggling to make the gimbal transition, remember: strip it down, shift the weight smartly, and always keep cable management top of mind. The smoother your rigging, the smoother your shots.
Camera: Blackmagic PYXIS 6K
Lens: Fujinon several lenses
Filter: none
Location: Switzerland
