Hi its my first post, and i dont know what would be good to share with u.. Gonna show you how to save some $$$ Follow my instructions and u should be fine. :) So today i am gonna show how to replace Clutch on Skoda, VW, SEAT.
First u remove Air Filter box, fresh air feed pipe/box and Battery.
To remove airbox you need unplug MAF sensor wich is on top of the hose and remove jubilee clip.
When airbox is removed, disconnect your battery, remove battery cover if u have one and there is 13mm (socket) bolt - remove it.
Remove battery bracket, with three 10mm bolts.
Remove gearstick cables, could be two clips in my situation there is just one clip, dont loose it. (nr1)
when cables are free remove three 13mm bolts (Nr4, nr5, nr6)
Stick gearbox cables behind ABS pump,bend them u need space!!!
Unplug all connections (nr2 earth wire and Nr3 switch)
when all thats disconnected remove slave cylinder two 13mm bolts, it can be inside gearbox then just disatach line.
Remove two top 18mm bolts from gearbox.
Now we are ready remove wheel, and get underneath.

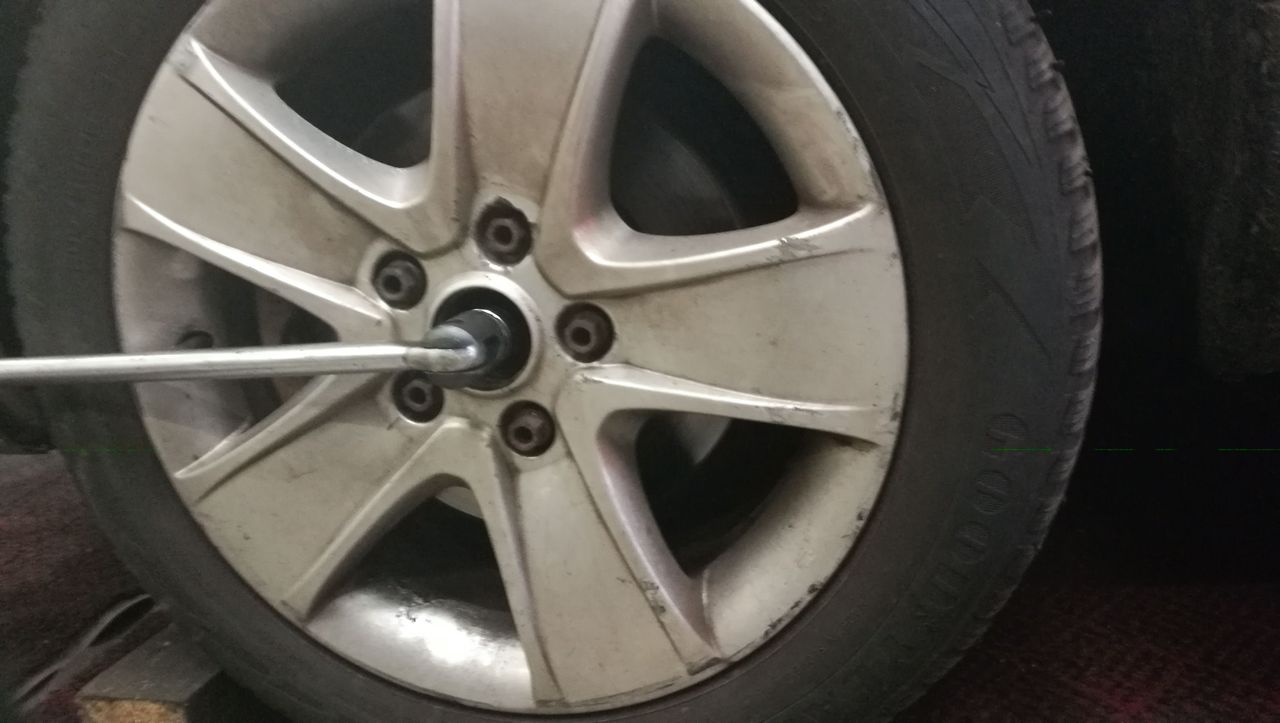

BEFORE U TAKE OFF WHEEL LOOSEN HUB NUT, if u cant do it alone ask someone who can press on brake while u turning it anticlockwise, or use impact gun.
Now its time to jack up car and remove front left wheel.
Remove plastic cover in my case its done with 8 T20 torx screws.
Remove six M10 HEX socket bolts in my case. Could be M8 on older models.
Remove engine mount Two 16mm bolts and one 21mm bolt
Remove starter motor Two 18 mm bolts, u can leave cables connected, just make sure u move it away and use some cable tie or wire to tight it to side.
Undo right side drive shaft M10's in my case HEX
And unplug oil level sensor
take off bost pipe jubilee clips.
Now its time to support your engine from bottom. i like to support from side too with jack see in picture bellow (not necessary).

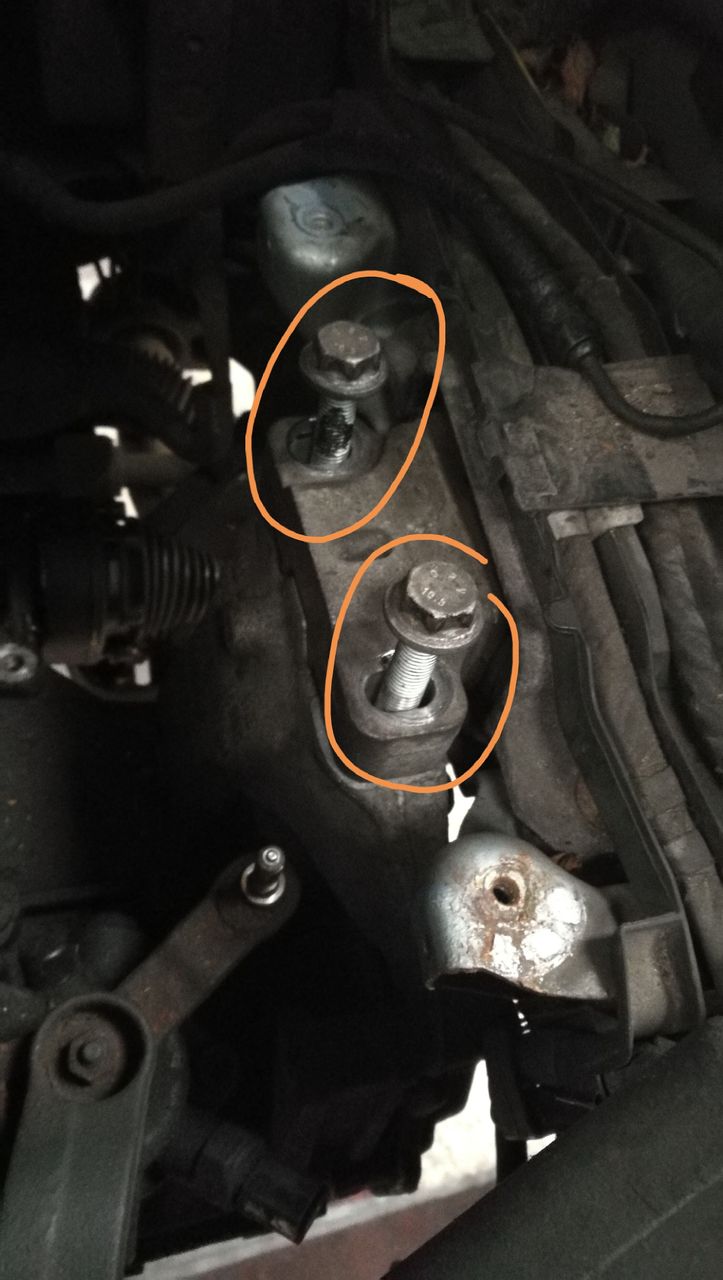

Now when engine is supported from bottom remove two 18mm bolts from gearbox mount.
from side you should be able remove three 16mm bolts (to get them u need drop engine a bit)
Now we are ready to remove 18mm bolts that holds engine block and gearbox together
Remove three 16 mm bolts from side and remove your gearbox :)
Remove your clutch and flywheel.. got photos for that too.. :)
Sorry for my English and i hope i helped someone..
If there will be enough interest may make more posts.
Thanks and good luck steemfriends :)
Regards Coolminded.
