Hello everyone! :)
Today, I want to tell you and show how an old tormented PC I turn into a black monster :)
That's it ... At the request of the user, I had to make a good product with high characteristics, well, there were really three obsolete hardware that needed to be disposed of, and in no other way.
The stuff that was in the interior I took and left one empty box
The principle of the body itself is pretty decent and I decided to leave it, the more the front part looks like a car, it even has lights that flash
And the first choo I decided to try on for our future handsome it became a 500W power supply
Specifications Power supply Zalman GS2 500W [ZM-500GS2]
Common parameters
Model
Zalman GS2 500W [ZM-500GS2]
Main color
the black
Form Factor
ATX
Certification
ATX12V Version
2.31
Support EPS12V
there is
Certificate 80 PLUS
no
Power Factor Corrector (PFC)
active
Electrical parameters
Power (nominal)
500W
Power through the 12 V line
444 W
Current on the line +12 V
12V1 37A
Current on the +3.3 V line
18 A
Current on the line +5 V
15 A
Current source of the source (+5 V in standby mode)
2 A
Current through -12 V
0.3 A
Input voltage range of the network
200-240 V
Cables and connectors
Removable cables
no
Main power connector
20 + 4-pin
Connectors for CPU power supply (CPU)
1x 4 + 4 pin
Connectors for powering the video card (PCI-E)
1x 6-pin, 1x6 + 2-pin
Number of connectors 15-pin SATA
6th
Number of connectors 4-pin Molex
4
Number of 4-pin Floppy connectors
1
Main power cord length
50 centimeters
Length of the processor power cable
60 cm

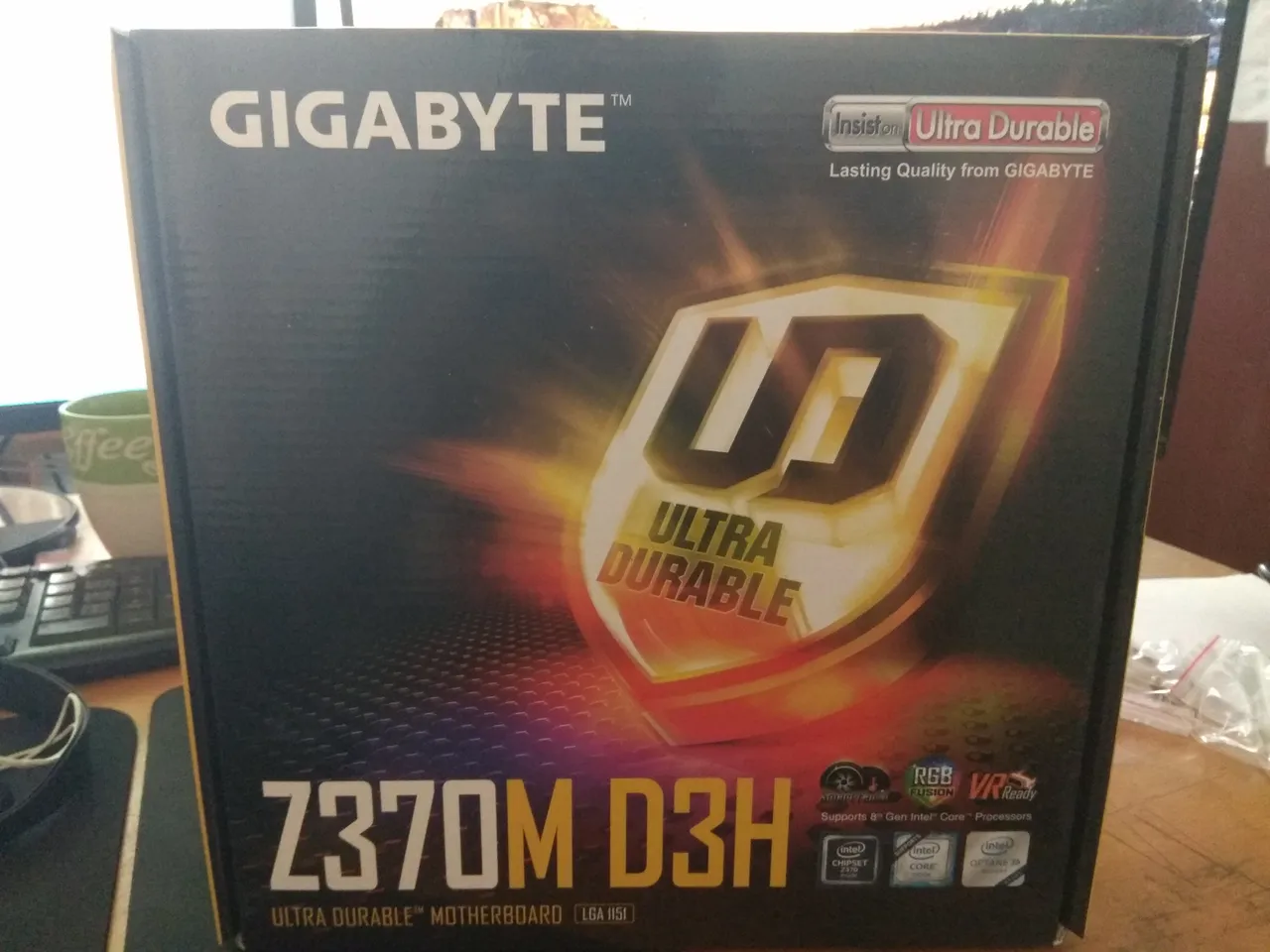

Next, according to plan, I had a motherboard installation, the board I chose gigabyte z370m D3H
And here is the motherboard itself in person

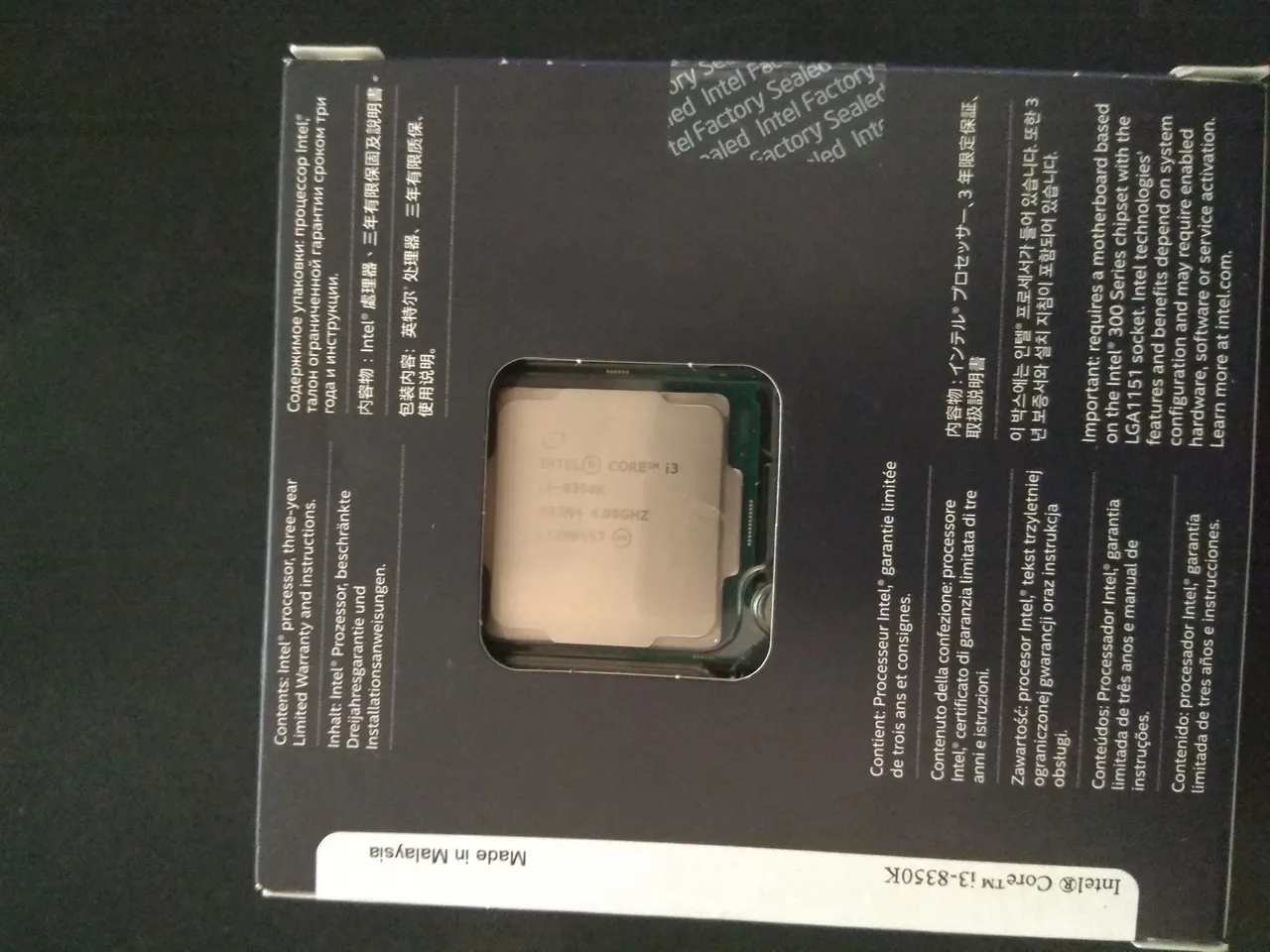

Then I started installing the processor
The processor I took the latest generation core i3-8350KLGA1151
This processor is not inferior to the fashionable core i5 and core i7.
Processor Intel Core i3-8350K 4.0GHz / 8GT / s / 8MB (BX80684I38350K) s1151 BOX
Characteristics
Intel Core i3 processor family
Connector type socket 1151
IntelCoffee Lake processor generation (eighth)
Number of cores4
Integrated graphics Intel UHD Graphics 630
Internal clock frequency 4000 MHz
Unlocked multiplier Yes
Data bus frequency8 GT / s
Packing typeBOX
Number of contacts1151
3-level cache memory capacity8 MB
Power TDP91 W
Name of the coreCoffee Lake-S
Well and further all on the standard, we establish a hard drive 1 TB, we add a bar of memory DDR4 on 4 GB, and as we establish cooling on the processor.
That's what I installed cooling on the processor
Renewal of the iron I have come to an end, I want to show what I got to build a designer
At this point, I'll probably stop, wait soon I will release my next post where I will show all the characteristics that this computer gives out :)
Until sooner meetings, I was happy to share with you the first part of my story about the modernization of the company, all the luck!)
