What Will I Learn?
Cisco Packet Tracer Network Simulation.
• How to create a wireless network.
• How to use "Cisco Packet Tracer".
• How to know the IP range.
Requirements.
NoteBook / Computer
Windows (XP, 2003, Vista, 7, 8 and 10)
GNU/Linux (x86 and x86-64, RPM and DEB based Linux distributions)
Mac OS X (x86-64 only)Cisco Packet Tracer Application
Difficulty
- Basic
Description
Wireless LAN network is a very effective network when used in a region or building. With the performance and security that can be guaranteed quality, As for the development of wireless LAN network itself becomes a very thing in the forefront of network development to replace the wired network or cable network.
basically because the network uses radio waves to be able to transmit data, therefore wireless components used also must have a standard frequency level. it is because if in a computer network has several types of vendors that make wireless networks, but although it happens a computer can still communicate as long as using the same frequency standards.
Cisco Packet Tracer is an application designed to be able to simulate a network before actually doing the network development, and also can be used for simulation research in a network.
- Work Steps
• Create a network using an Access Point consisting of 10 PCs and 10 Laptops
• Create a WPA2-PSK security system on the Access Point with the SSID as we want and the Network password.
1.make the network as follows.
- Then create SSID and Password in Access Point.
- Clicked 2 times on AP.
- After that choose Config tab select Port 1 fill in SSID and Password.
- After that, connect PC and Laptop to AP.
Clicked 2 times on PC / Laptop.
Then choose Desktop tab choose PC Wireless
After that, choose the Connect tab choose the name of the AP you want to connect pressing Connect
- After that fill in the AP password.
When completed, then PC and Laptop are connected to AP.
After that fill the IP Address for PC and laptop.
o Clicking 2 times on PC / laptop.
o Then select Desktop tab choose IP Configuration.
Then choose Static radio button fill in IP Address.

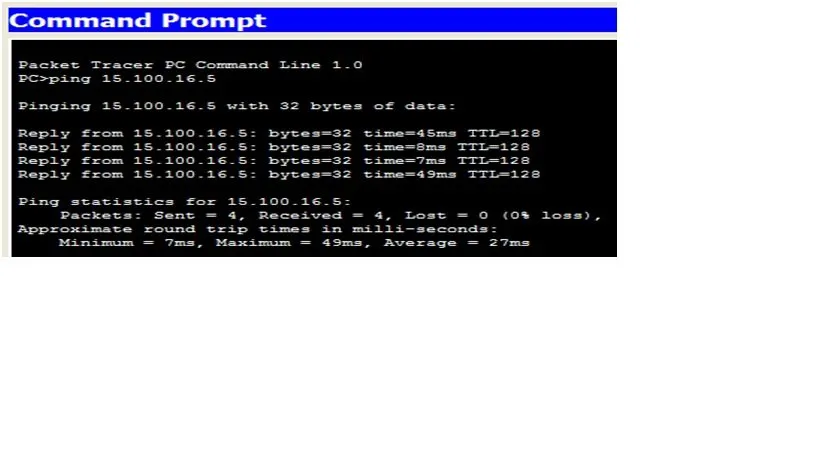

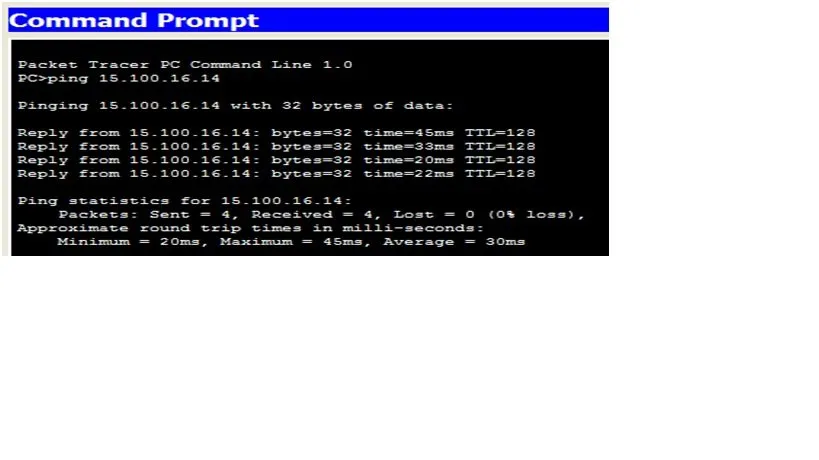

After that, perform PING to find out if PC / laptop is connected.
o PC – PC
PC 1 – PC 2
PC 2 - PC 3
PC 3 - PC 4
PC 4 - PC 5
PC 5 – PC 6
o PC – Laptop
PC 6 – Laptop 1
PC 7 – Laptop 2
PC 8 – Laptop 3
PC 9 – Laptop 4
PC 10 – Laptop 5
o Laptop – PC
Laptop 6 – PC 2
Laptop 7 – PC 4
Laptop 8 – PC 6
Laptop 9 – PC 8
Laptop 10 – PC 10
o Laptop – Laptop
Laptop 10 – Laptop 1
Laptop 1 – Laptop 2
Laptop 2 – Laptop 3
Laptop 3 – Laptop 4
Laptop 4 – Laptop 5
Analyze
From Trial The above can be seen that, to create a wireless network, We must require WLAN Card for PC or laptop can receive signals from Access Point.
In determining the IP address of PCs and laptops, the assembly should not fill a different IP address class.
In the network testing process (PING), if the network successfully connected then the message displayed is reply, whereas if the network is not successfully connected then the message displayed is the request time out.
